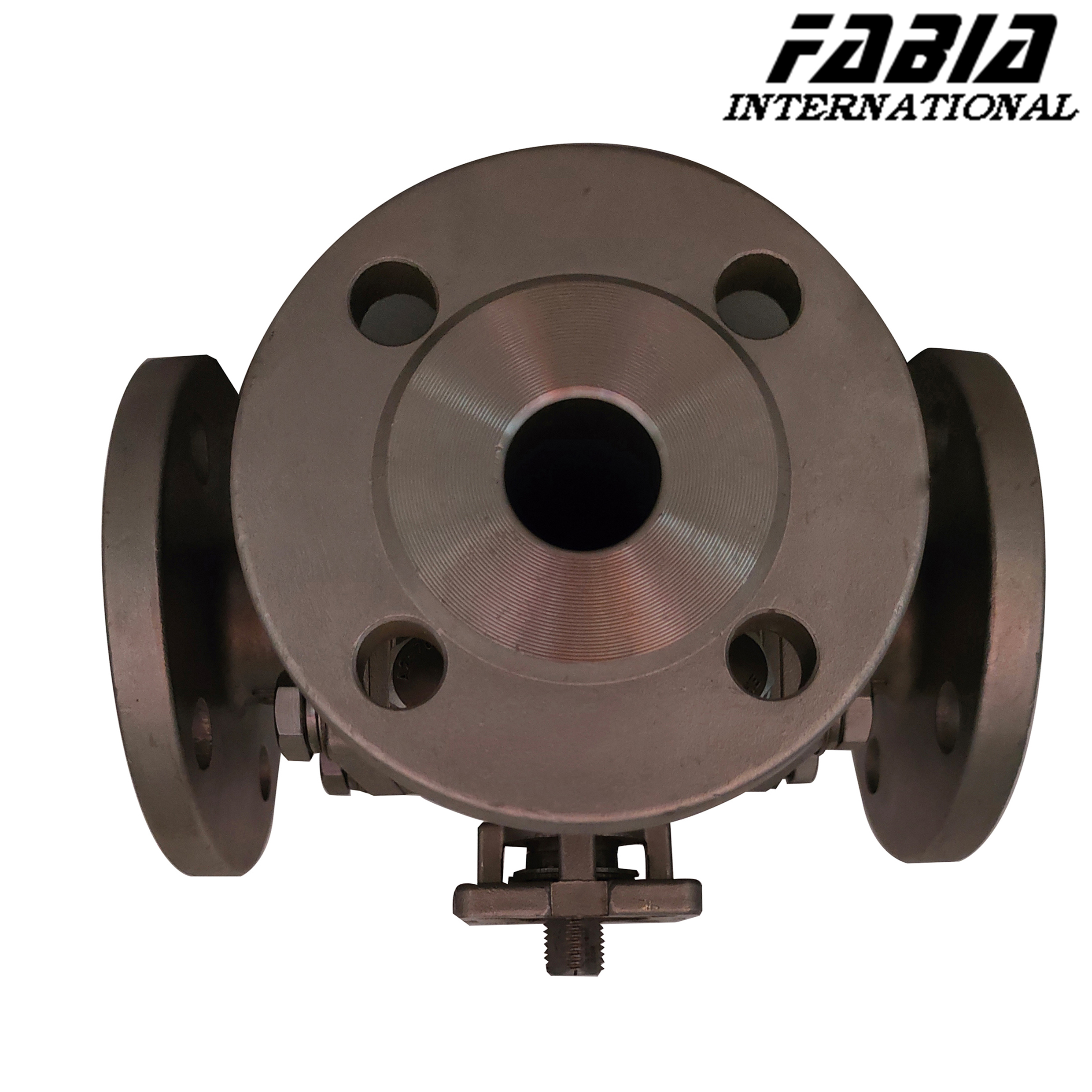

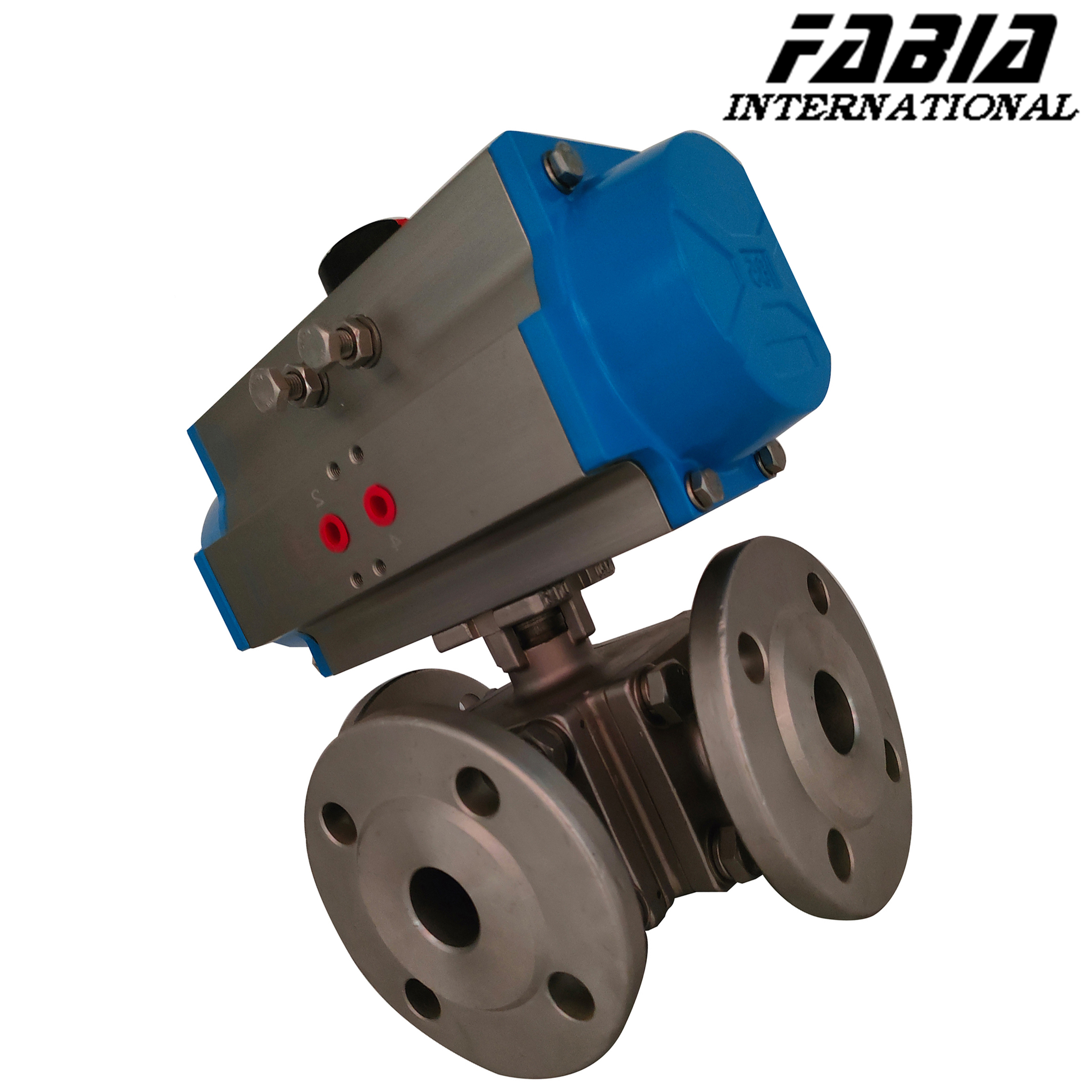

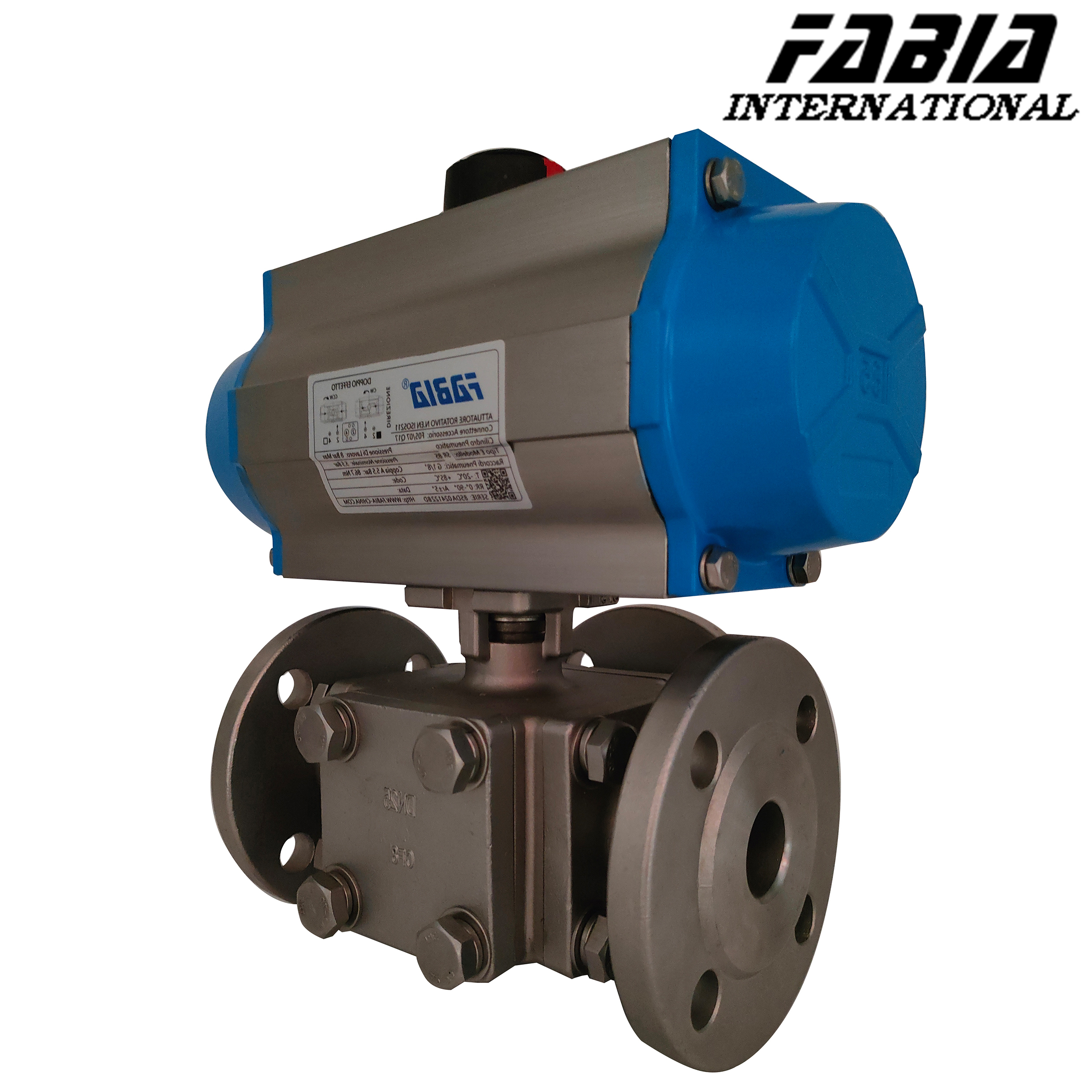

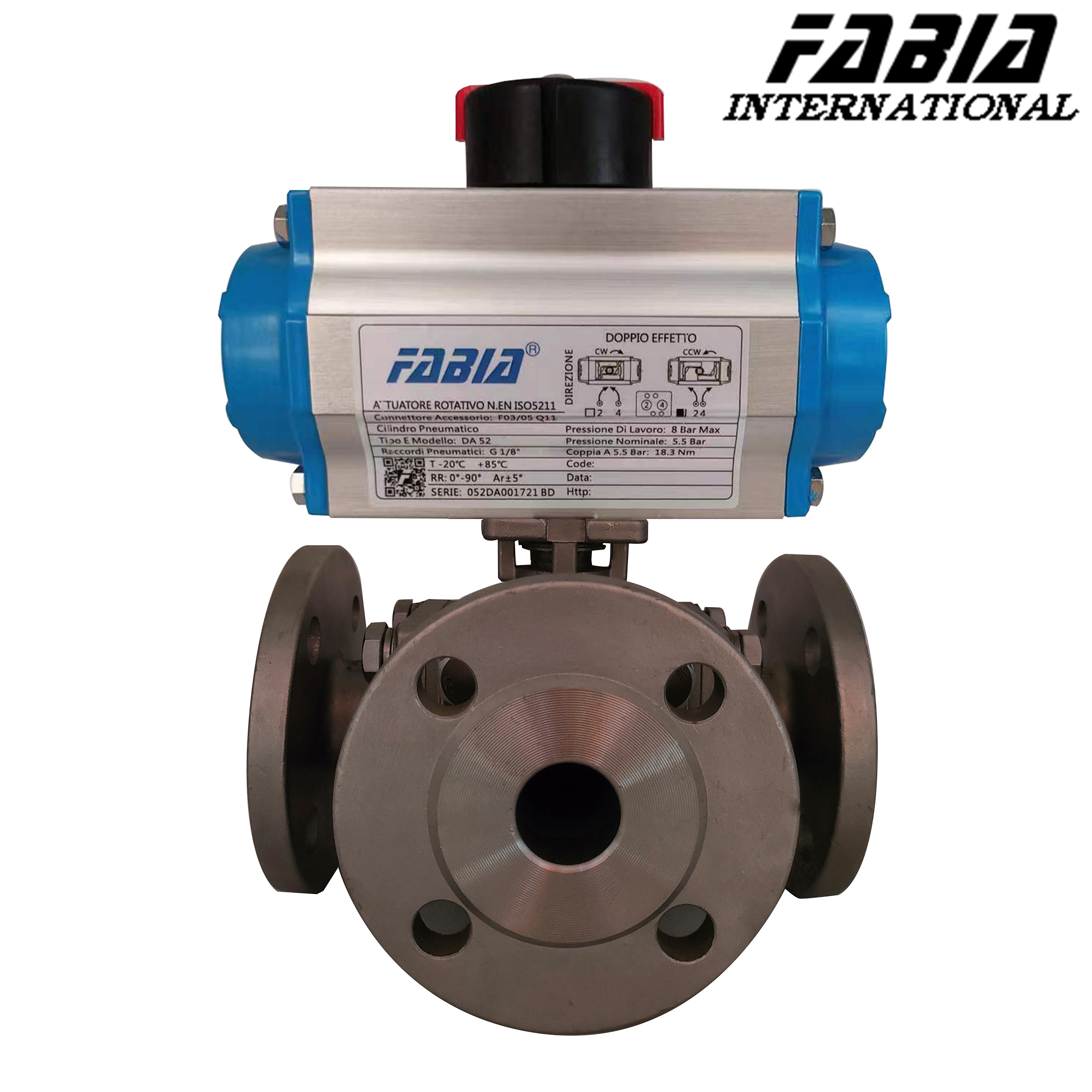

Pneumatic three-way flange Ball Valve For Chemical, Petroleum, Electric Power
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | FABIA |
| 인증 | ISO9001,CE,CCS,DNV |
| 모델 번호 | 1/8 인치 ～ 36 인치 |
| 문서 | 제품 설명서 PDF |
| 최소 주문 수량 | 1 세트 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 상자/목재 케이스 |
| 배달 시간 | 15-30 근무일 |
| 지불 조건 | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력 | 주당 100-1000 세트 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 3면 공압 공발 밸브 | 밸브 유형 | 공기 공구 밸브 |
|---|---|---|---|
| 재료 | 스테인레스 스틸 | 작업 | 영적인 |
| 연결 | 나사산 | 압력 | 150-600 psi |
| 액추에이터 | 공압 액추에이터 | 좌석 | ptfe |
| 온도 | -30°C~+150°C | 연결 끝 | 나사산 |
제품 설명
FABIA Pneumatic Ball Valve For Chemical, Petroleum, Electric Power
1. Description:
Pneumatic three-way ball valve, widely used in chemical, petroleum, power, food, medicine, refrigeration, aviation, aerospace and other industrial fields.
Three-way ball valve, for medium diversion, confluence, flow direction switching, any pipe can be used as an entrance or exit.
Pneumatic three-way ball valve is divided into pneumatic three-way L-type ball valve and pneumatic three-way T-type ball valve, which can meet different production process requirements.
2.Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic Ball Valve For Chemical, Petroleum, Electric Power | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
- Simple structure, small size and light weight.
- Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
- Easy to operate, open and close quickly, from full open to full close as long as the rotation is easy to control at a distance.
- When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause the erosion of the sealing surface of the pneumatic three-way ball valve when it is passed.
