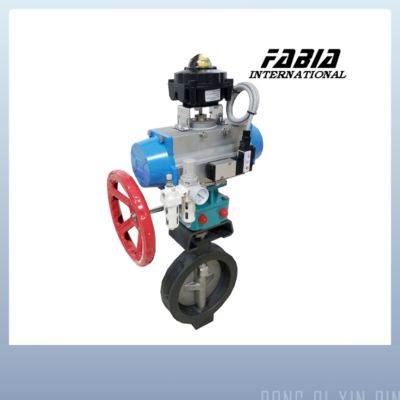

Hard Sealed Pneumatic Actuator Operated Butterfly Valve Small Fluid Resistance Source manufacturer
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | FABIA |
| 인증 | ISO9001,CE,CCS,DNV |
| 모델 번호 | 1/8 인치 ～ 36 인치 |
| 문서 | 제품 설명서 PDF |
| 최소 주문 수량 | 1 세트 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 상자/목재 케이스 |
| 배달 시간 | 15-30 근무일 |
| 지불 조건 | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력 | 주당 100-1000 세트 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 공압 클램프 버터플라이 밸브 | 밸브 유형 | 나비 |
|---|---|---|---|
| 재료 | 탄소강 | 밸브 작동 | 영적인 |
| 밸브 연결 타입 | 클램프 연결 | 버터플라이 밸브 직경 | DN15-600 |
| 밸브 응용 프로그램 | 물 / 석유 / 가스 | 밸브 압력 | PN10-16 |
| 밸브 씰 | PTFE/EPDM | 밸브 온도 | -30C~+150C |
제품 설명

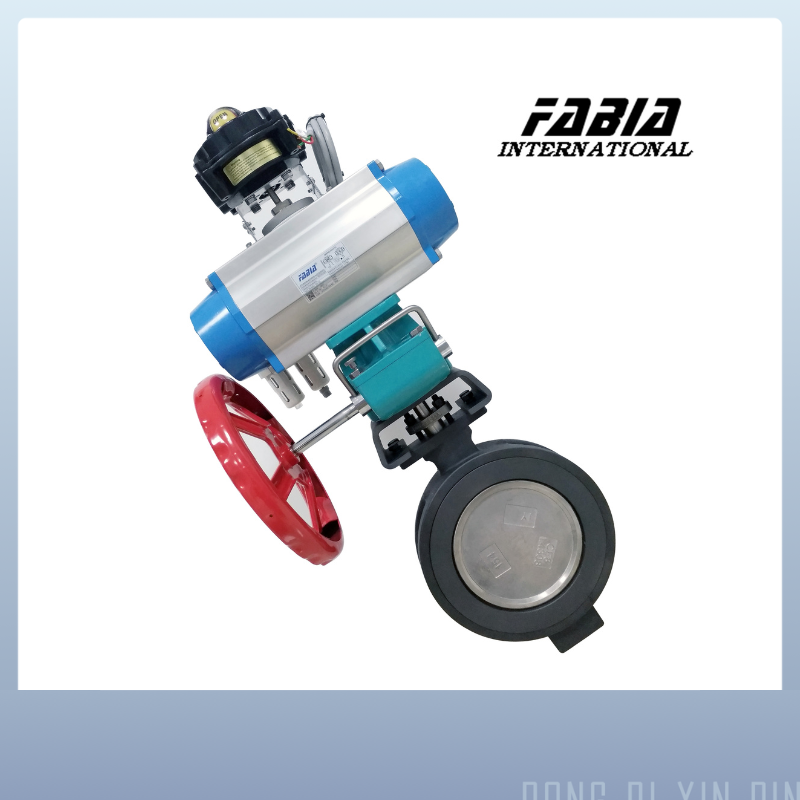

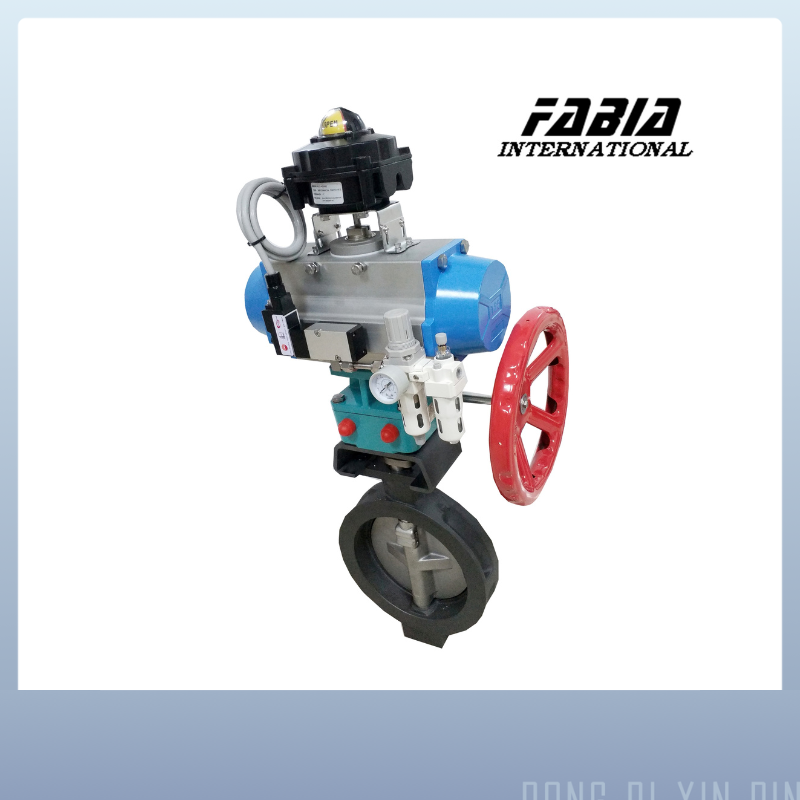

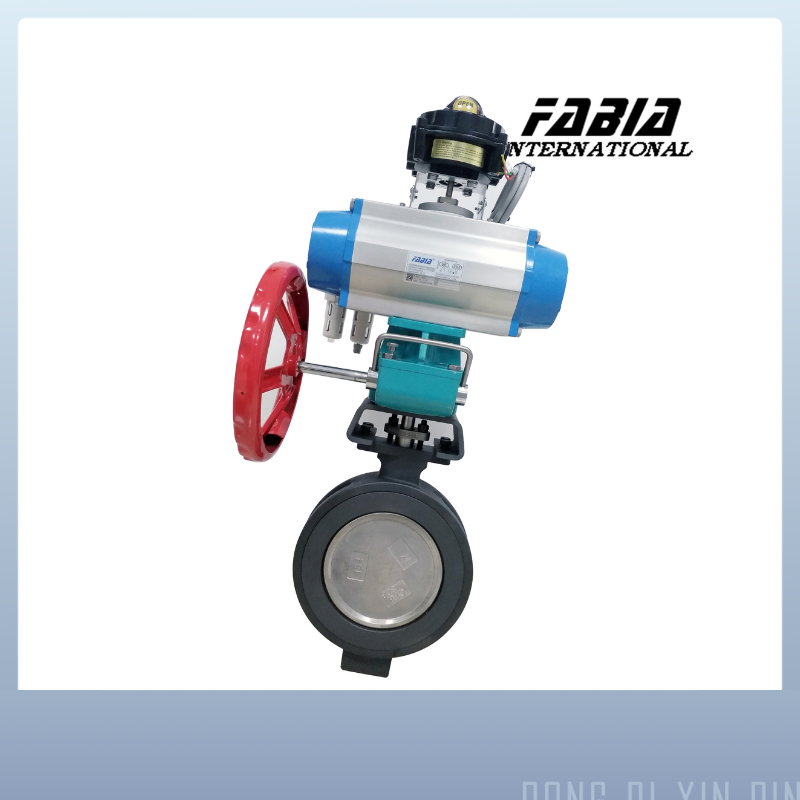

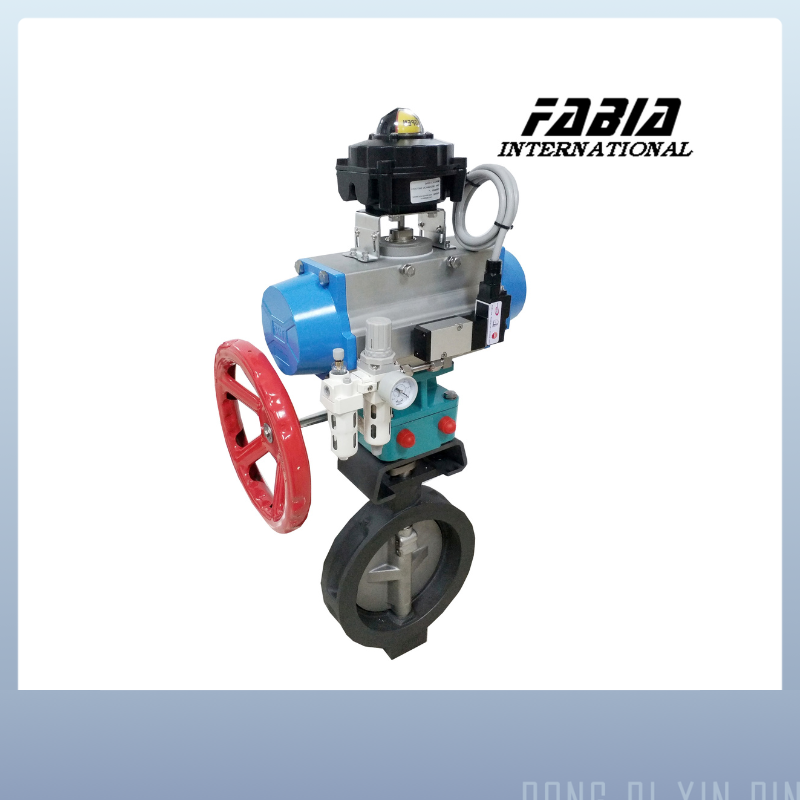

FABIA Hard Sealed Pneumatic Butterfly Valve Small Fluid Resistance
1. Description:
Butterfly valve is suitable for food. Medicine. Petrochemicals. A power plant. A steel mill. Industrial environmental protection water treatment and high-rise buildings.
Best device for regulating flow and cutting off fluid on the supply and drainage pipe.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Small Fluid Resistance Hard Sealed Pneumatic Butterfly Valve | |
| Size: | 2 inch ～ 36 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt Clamp/Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-D.......... | |
3. Features:
- Small fluid resistance, large effective flow area when the large diameter pneumatic disc valve is fully opened, opening and closing quickly and labor saving, the disc can be rotated 90 angles to complete the opening and closing,
- Because the medium force of the disc hand on both sides of the rotating shaft is close to equal, and the torque generated is opposite, so the opening and closing torque is small, and a good seal can be achieved under low pressure.
- Sealing materials of the disc valve are diacene rubber , fluororubber , food With rubber, lined with tetrafluoroethylene, the sealing performance is good, and the hard seal disc valve is a soft and hard laminated metal sheet with the heavy advantages of metal hard seal and elastic seal, and has excellent sealing performance at low temperature.
