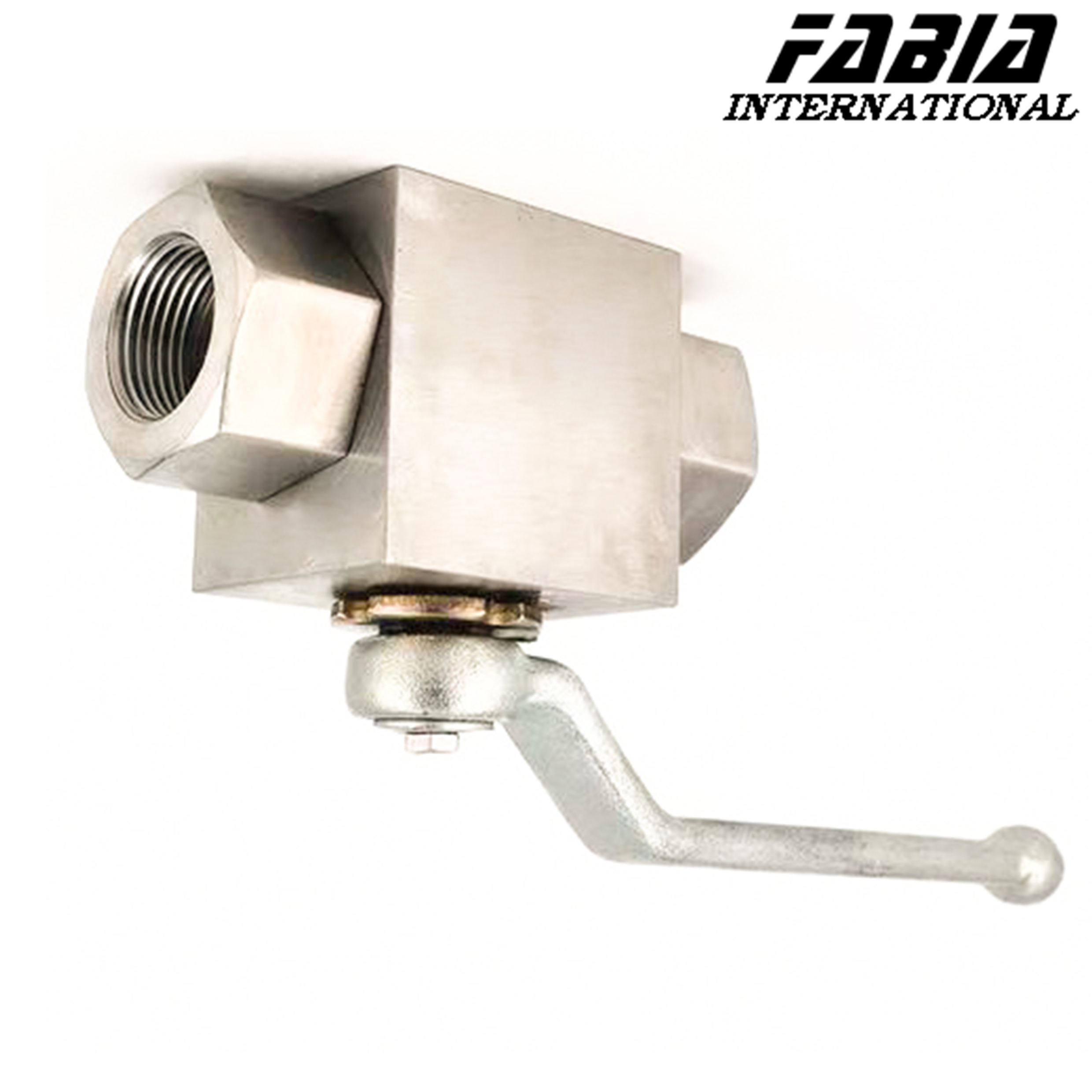

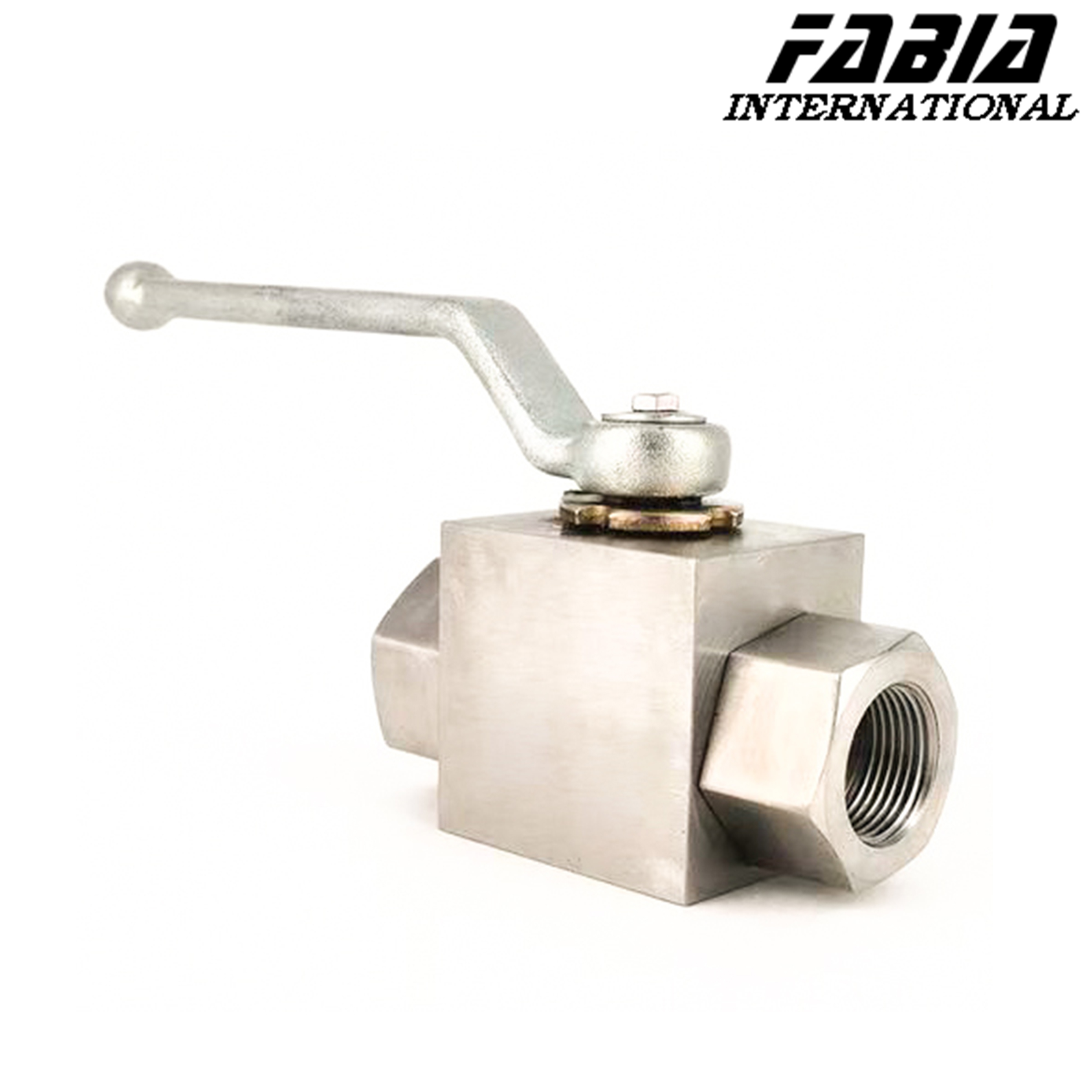

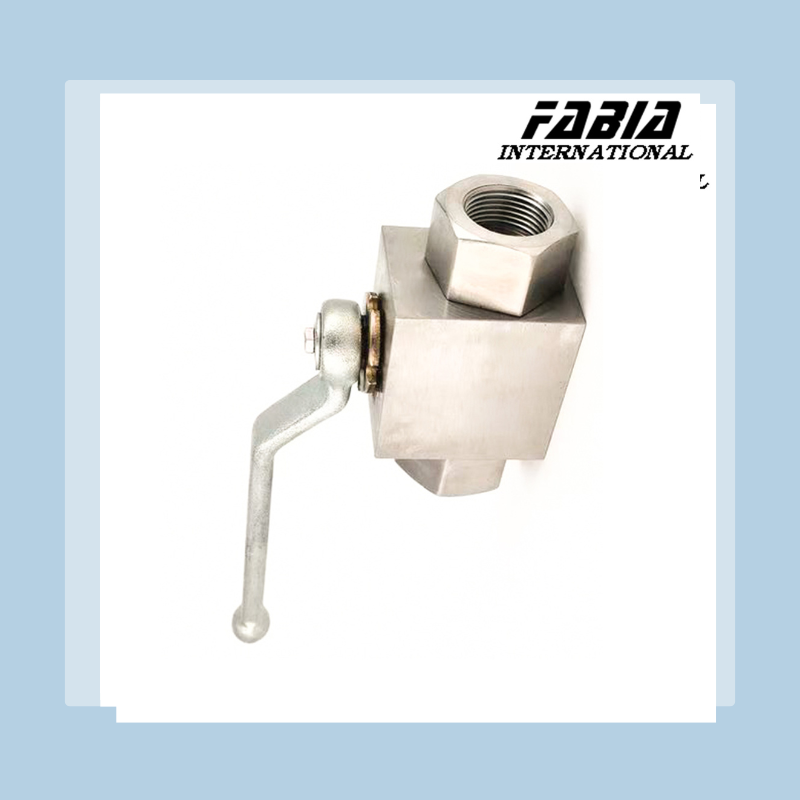

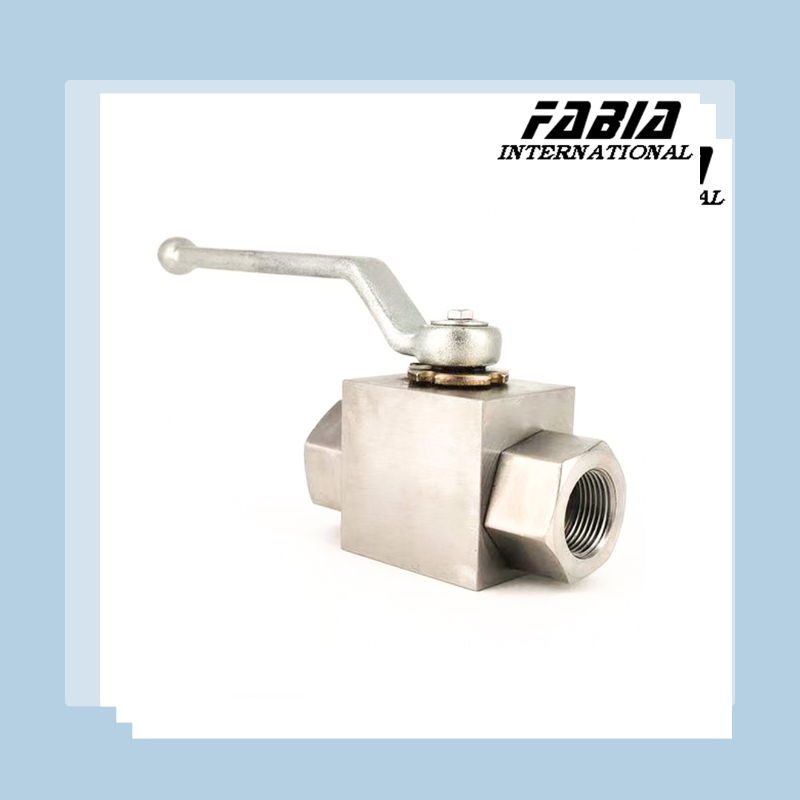

Easy to use Manual High Pressure Tee Butt Welding Ball Valve
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | FABIA |
| 인증 | ISO9001,CE,CCS,DNV |
| 모델 번호 | 1/8 인치 ～ 36 인치 |
| 문서 | 제품 설명서 PDF |
| 최소 주문 수량 | 1 세트 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 상자/목재 케이스 |
| 배달 시간 | 15-30 근무일 |
| 지불 조건 | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력 | 주당 100-1000 세트 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 수동 고압 볼 밸브 | 밸브 유형 | 고압 볼 밸브 |
|---|---|---|---|
| 재료 | 스테인레스 스틸 | 작업 | 수동 |
| 연결 유형 | 소켓 용접 | 애플리케이션 | 석유, 화학, 발전소 |
| 특징 | 반성, 반부름, 장수 | 메디아 | 물, 기름, 가스 |
| 자격증 | ISO 9001 | 압력 등급 | 1000~6000 PSI |
| 좌석 | PTFE, 엿봄 | 크기 | 1/2-8 인치 |
| 온도 범위 | -20~200°C |
제품 설명
FABIA Manual High Pressure Tee Butt Welding Ball Valve Simple and convenient
1. Description:
Composed of ball, valve seat, stem, handle, etc., with simple structure, good sealing, easy operation and other characteristics, widely used in petroleum, chemical, electric power, metallurgy and other industries.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Manual High Pressure Tee Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Fluid resistance is small, the ball valve is one of the small fluid resistance in all valves, even if it is a reduced diameter ball valve, the fluid resistance is quite small.
- Thrust bearing reduces the friction torque of the valve stem, which can make the valve stem operate smoothly and flexibly for a long time.
- Sealing performance of the seat is good, the sealing ring made of polytetrafluoroethylene and other elastic materials, the structure is easy to seal, and the sealing capacity of the ball valve increases with the increase of the medium pressure.
- Because polytetrafluoroethylene and other materials have good self-lubrication, and the friction loss with the ball is small, so the service life of the ball valve is long.
- Lower mounted valve stem and valve stem head convex step to prevent the valve stem ejecta, such as fire caused by the valve stem seal damage, the convex step and the valve body can also form metal contact to ensure the valve stem seal.
- Anti-static function: set the spring between the ball, valve stem and valve body, which can export the static electricity generated by the switching process. High pressure three-way ball valve is a common pipe connection device, mainly used for shunt, confluence, regulating flow and so on.
