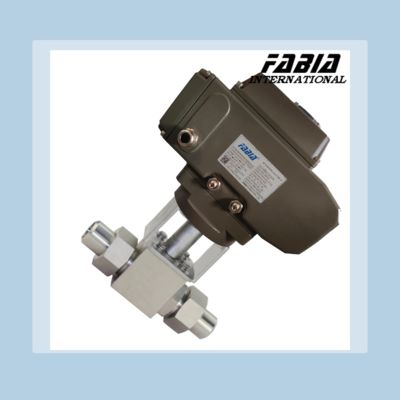

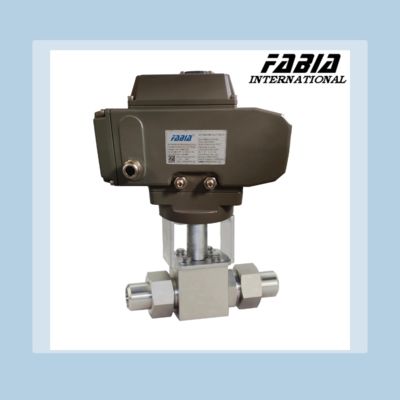

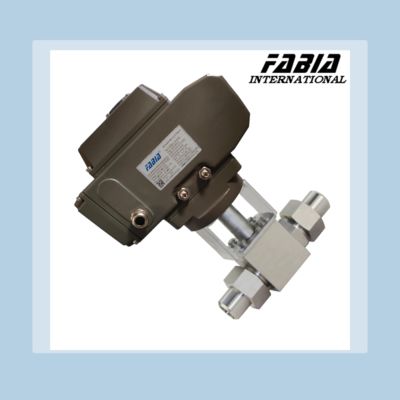

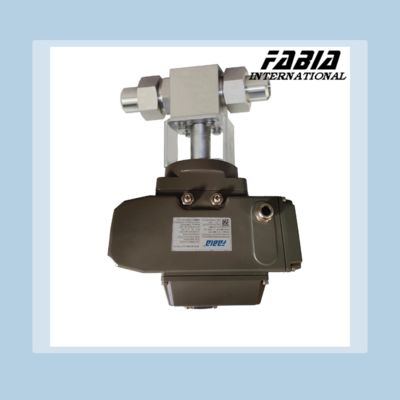

Electric Ball Valve Two Way Butt Welding Ball Valve 1 2" 3/4" High Pressure
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | FABIA |
| 인증 | ISO9001,CE,CCS,DNV |
| 모델 번호 | 1/8 인치 ～ 36 인치 |
| 문서 | 제품 설명서 PDF |
| 최소 주문 수량 | 1 세트 |
| 가격 | 협상 가능 |
| 포장 세부 사항 | 상자/목재 케이스 |
| 배달 시간 | 15-30 근무일 |
| 지불 조건 | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| 공급 능력 | 주당 100-1000 세트 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 제품 이름 | 전기 고압 부트 웰딩 볼 밸브 | 밸브 유형 | 고압 볼 밸브 |
|---|---|---|---|
| 판막 | 고압 | 재료 | 스테인레스 스틸 |
| 연결 | 엉덩이 용접 | 작업 | 전기 같은 |
| 메디아 | 물, 기름, 가스 | 압력 등급 | 고압 |
| 밀봉하다 | PTFE/EPDM | 압력 범위 | 0-10mpa |
| 크기 | 1/2-8 인치 | 자격증 | ISO 9001 |
| 온도 범위 | +120' Ｃ에 대한 -20' Ｃ |
제품 설명
FABIA Electric Two Way Butt Welding Ball Valve High Pressure
1. Description:
Electric two-way ball valve is usually connected by the electric actuator and the valve, and becomes an electric valve after installation and debugging.
Electric two-way valve uses electric energy as the power to connect the electric actuator to drive the valve and realize the switching and adjusting action of the valve.
So as to achieve the purpose of switching or adjusting the pipeline medium.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Way Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Used to control the opening or closing of cold water or hot water air conditioning system pipes, to achieve the purpose of controlling room temperature.
- Driver is driven by a single hysteresis synchronous motor, the valve spring is reset, the valve is not working when it is normally closed, when it needs to work, the thermostat provides an open signal, so that the electric valve is connected to the AC power supply and action.
- Open the valve, chilled water or hot water into the fan coil, to provide cold or heating for the room, when the temperature reaches the thermostat set value,
- Thermostat makes the electric valve power off, the reset spring to close the valve, thus cutting off the flow into the fan coil,
- through the valve closed and opened, so that the room temperature is always maintained in the temperature control set temperature range.
