SCR 배기 가스 배추 배추 밸브
| Place of Origin | China |
|---|---|
| 브랜드 이름 | FABIA |
| 인증 | ISO9001,BV,CCS,DNV |
| Model Number | 2 inch ～ 100 inch |
| 문서 | 제품 설명서 PDF |
| 최소 주문 수량 | 1 세트 |
| 가격 | 협상 가능 |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Product Name | SCR Exhaust Gas Butterfly Valve | Valve Application | Ventilation |
|---|---|---|---|
| 밸브 재료 | 스테인리스 스틸 | Valve Connection | Flanged |
| Valve Operation | Pneumatic | Valve Certification | BV,DNV,CCS |
| Valve Pressure | ≤0.25Mpa | Valve Seal | Stainless steel |
| Valve Size | 2-100 inch | Valve Temperature | 500℃ |
| 밸브형 | 나비 | ||
| 강조하다 | 내구성 있는 해상 나비 밸브,신뢰할 수 있는 해상 나비 밸브,SCR 수압 해상 나비 밸브 |
||
제품 설명

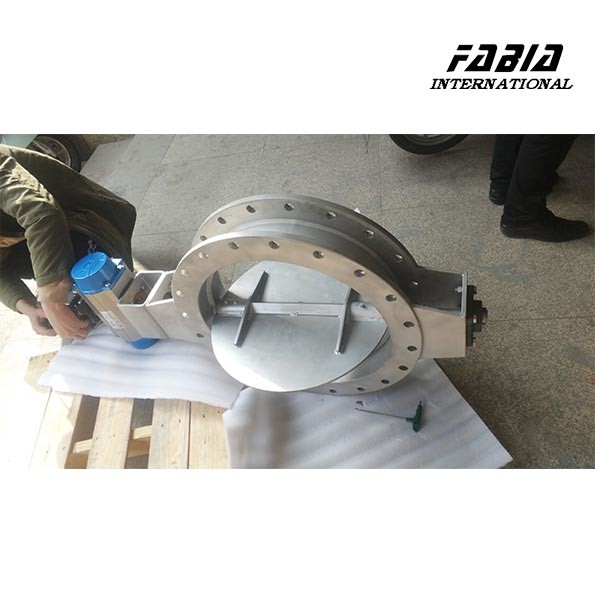

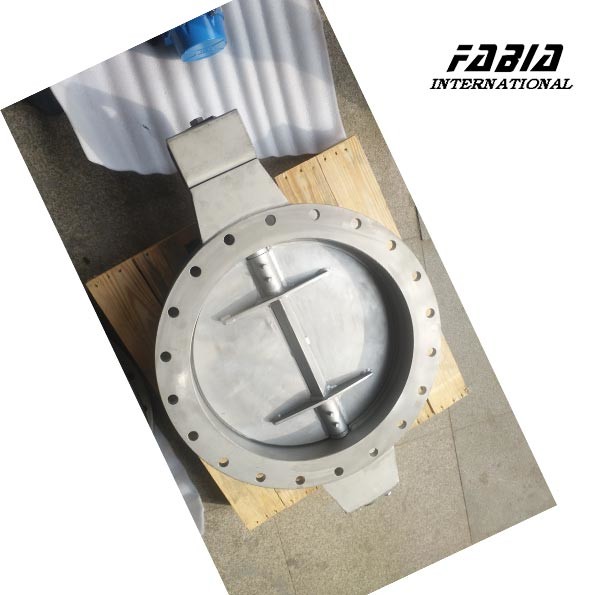

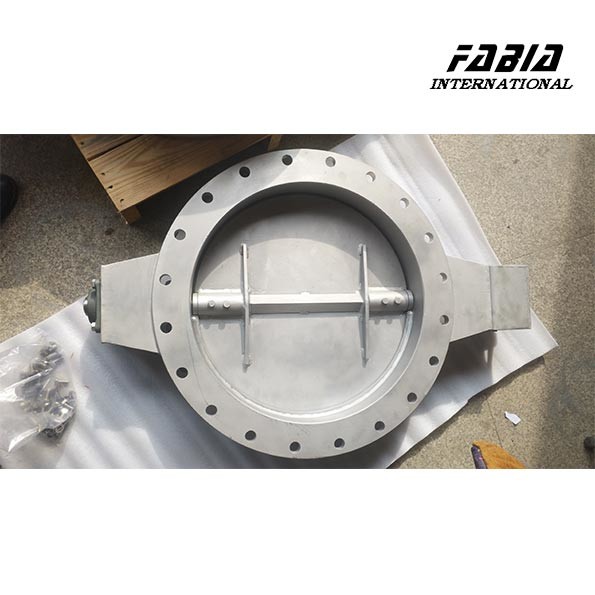

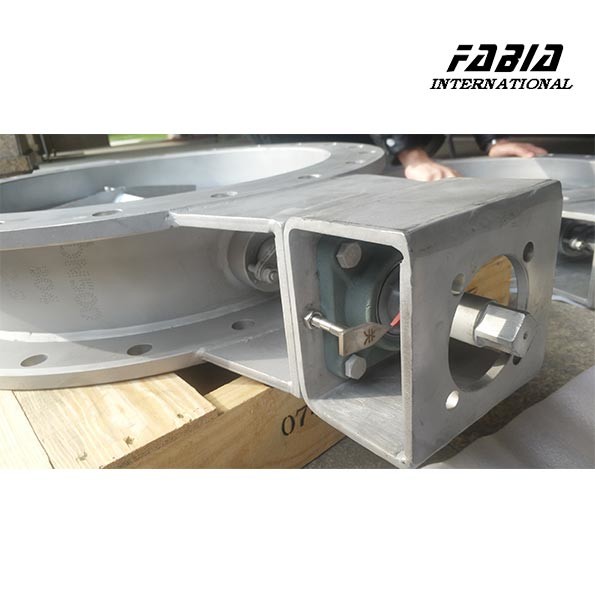

Pneumatic SCR Exhaust Gas Butterfly Valve Reliable and Durable for Marine Industry
1. Description:
SCR Exhaust Gas Butterfly Valve is mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen
oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.
In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe
system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flange type heavy-duty ventilation butterfly valve | |
| Size: | 2inch ～ 100 inch | |
| Material: |
316/316L/304/304L/ Corten |
|
| Connection type: | Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | ≤0.25Mpa | |
| Temperature: | -≤500℃ | |
| Model: | FB-D-3.......... | |
3. Features:
- Simple and light in structure
- Suitable for low pressure air or other gas flow, pressure control and high temperature gas
- the main structural components of the valve are welded
- CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
- High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
- Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
- Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.
-
Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.
-
Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.
